Friedman IR-J Jake E. Lee Signature All-Tube Preamp Pedal

Friedman IR-J Jake E. Lee Signature All-Tube Preamp Pedal

The Friedman IR-J dual-channel tube preamp is an entire Friedman rig in a compact pedalboard-friendly package. IR-J boasts two fully independent foot-switchable channels based on Friedman’s legendary JEL-100 and JEL-20 designs which are rooted in Dave’s modded ‘800/PLEXI circuits. Powered by two high-voltage 12AX7 preamp tubes, each channel delivers deep harmonic richness and the touch response of a large format Friedman tube amp. The SYNERGY powered, state of the art, ultra-low latency, DSP IR cabinet/power amp simulation sends a studio-quality mic’d-up tone to your DAW or Front-of-House. The IR-J provides easy-to-use controls without complex menus and 100-page manuals.

Specs and Features:

• Jake E Lee Signature
• All-tube HIGH-VOLTAGE preamp – DI
• 2 x 12AX7 preamp tubes
• Two independent channels + TS style boost per channel

  • Based on Friedman’s legendary JEL-100 and JEL-20 designs
• MIDI programmable features:Power amp simulation with software editable Presence, Thump and Low-Pass Filter (per channel)

  • Channel select / Boost
  • IR select
  • Thump, Presence and Low-Pass Filter – three-way switch per channel
  • Effects loop ON/OFF
  • Boost Lock
• Low latency Impulse Response cabinet simulation (bypassable)
• Three position CAB/IR select switch per channel (programmable via software)
• 18 free Friedman IRs or load your own

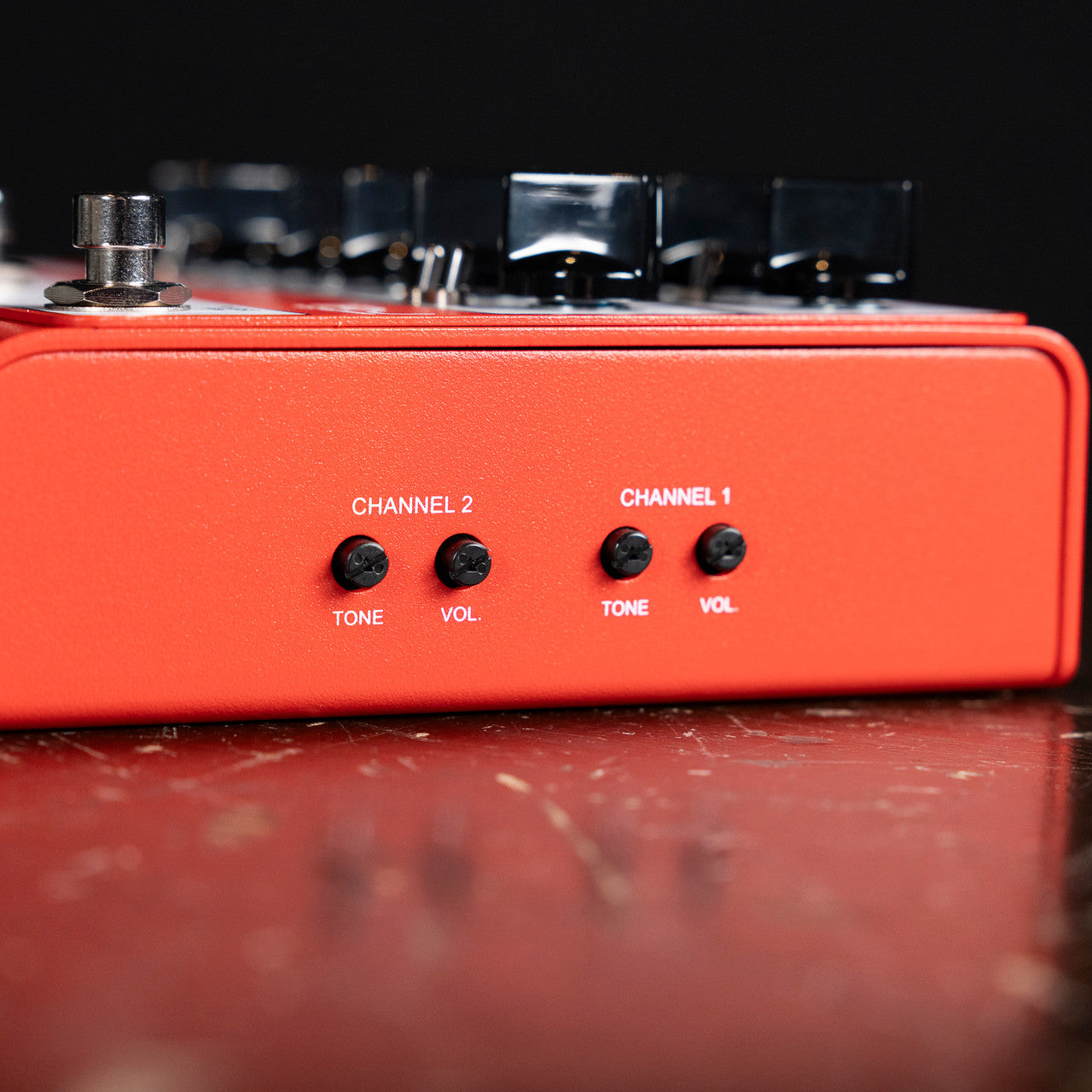

• Boost Volume (top) – Vol. (gain amount) and Tone controls (per channel) on side panel
• Volume and Gain controls (per channel)
• Full EQ consisting of Bass, Middle, Treble (per channel)
• 3-way Bright switch (per channel)
• 2-way Gain switch (Channel 2)
• Three multi-function foot switches
• Ultra-transparent series FX loop (bypassable)
• TRS balanced output
• Headphone output
• MIDI 5 pin standard connector and USB MIDI
• USB software editor – powered by SYNERGY
• Limited 3-year Warranty
• Universal 12V Power Supply Included
• 6 Foot USB2.0 A Male to B Male cable Included
• Dimensions (Including Knobs): 5.5” (D) x 6.5” (W) x 2.3 (H)
• Weight: 1.5 lbs.
