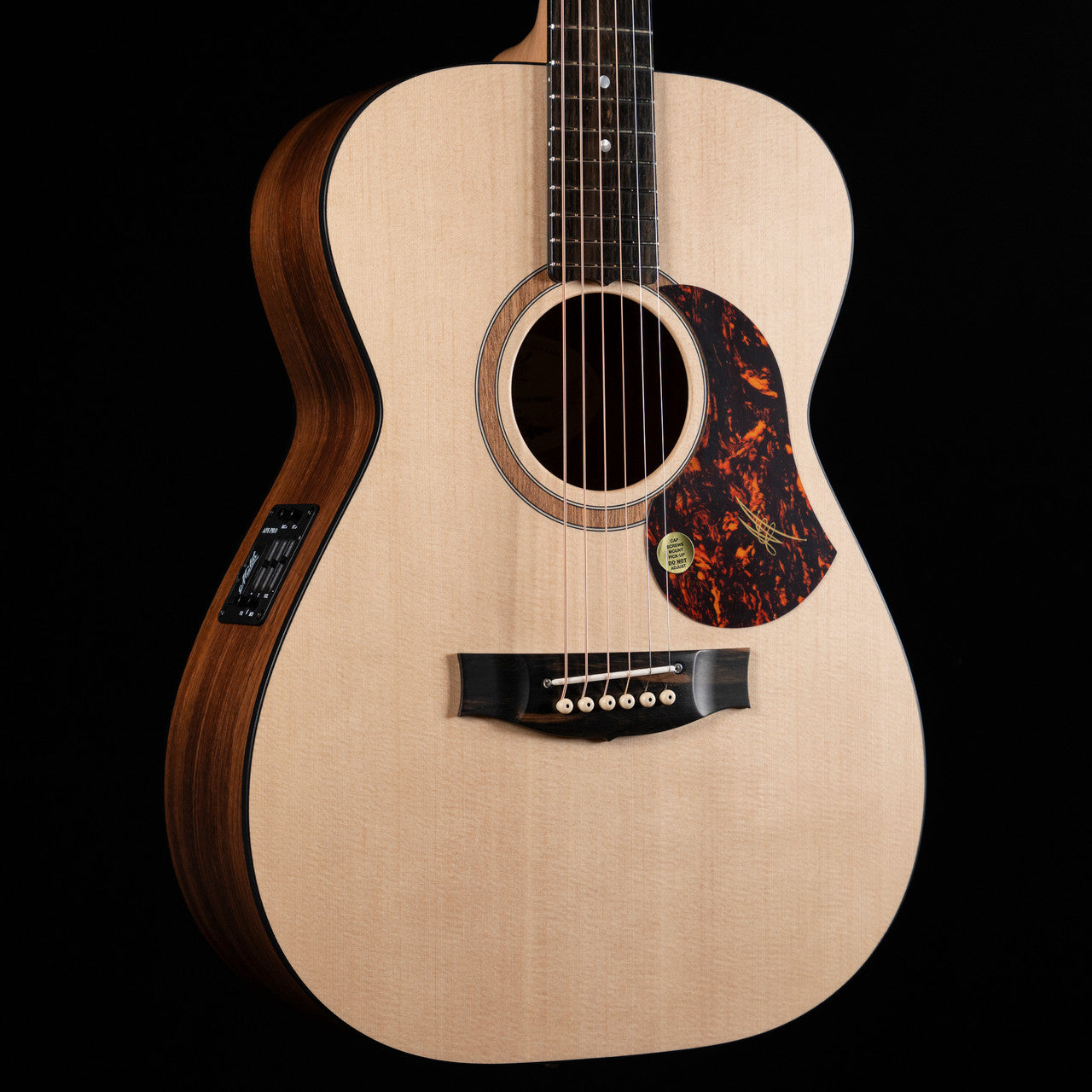

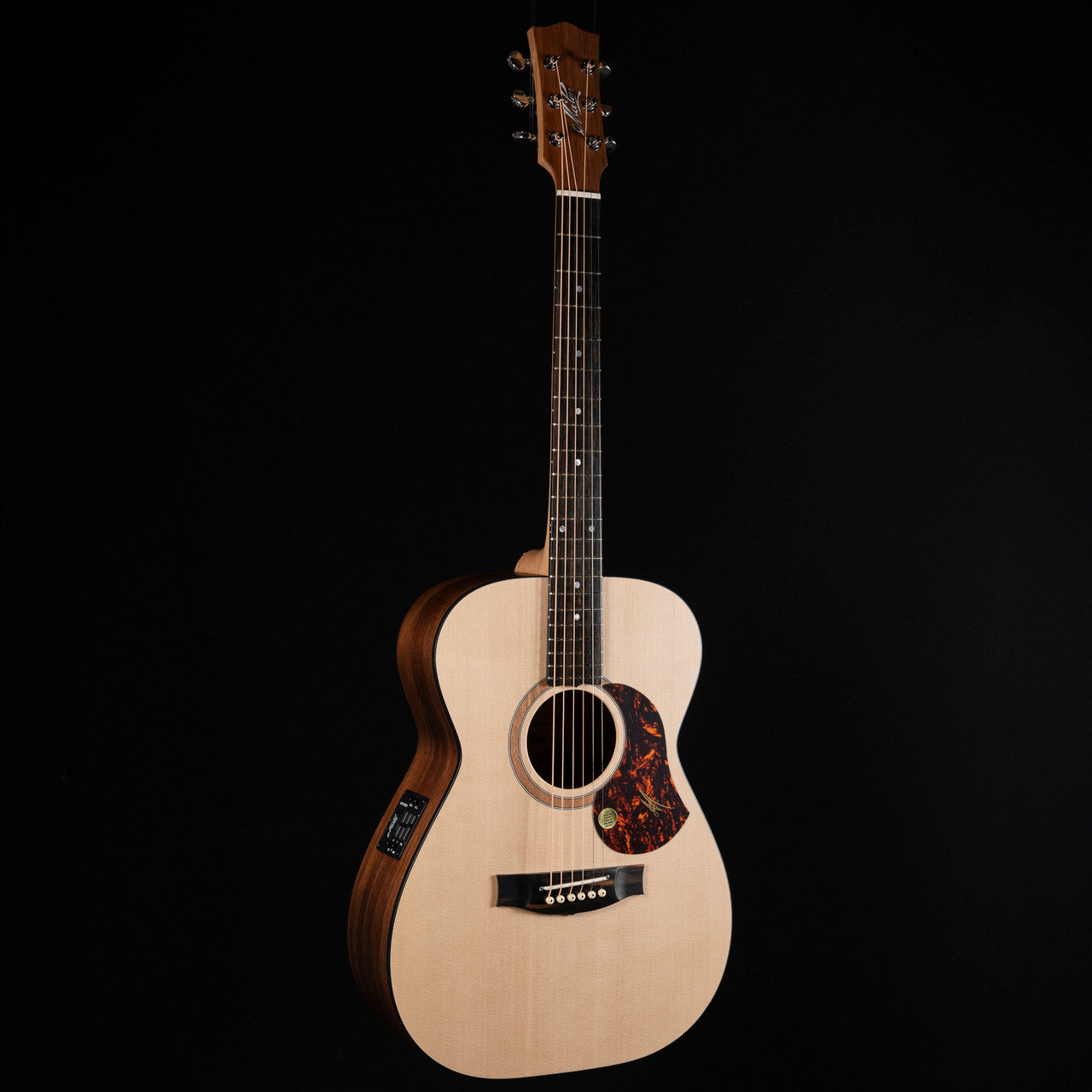

Maton SRS808 Acoustic Electric Guitar

A forward shifting of the X braces and the shifting of scallop peaks to nodal points around the soundboard help to enhance the vibration of the top. The shifting of the X braces also allowed the inclusion of a second, parallel tone bar which allows the scalloping of both tone bars, and spreads the load while reducing mass.

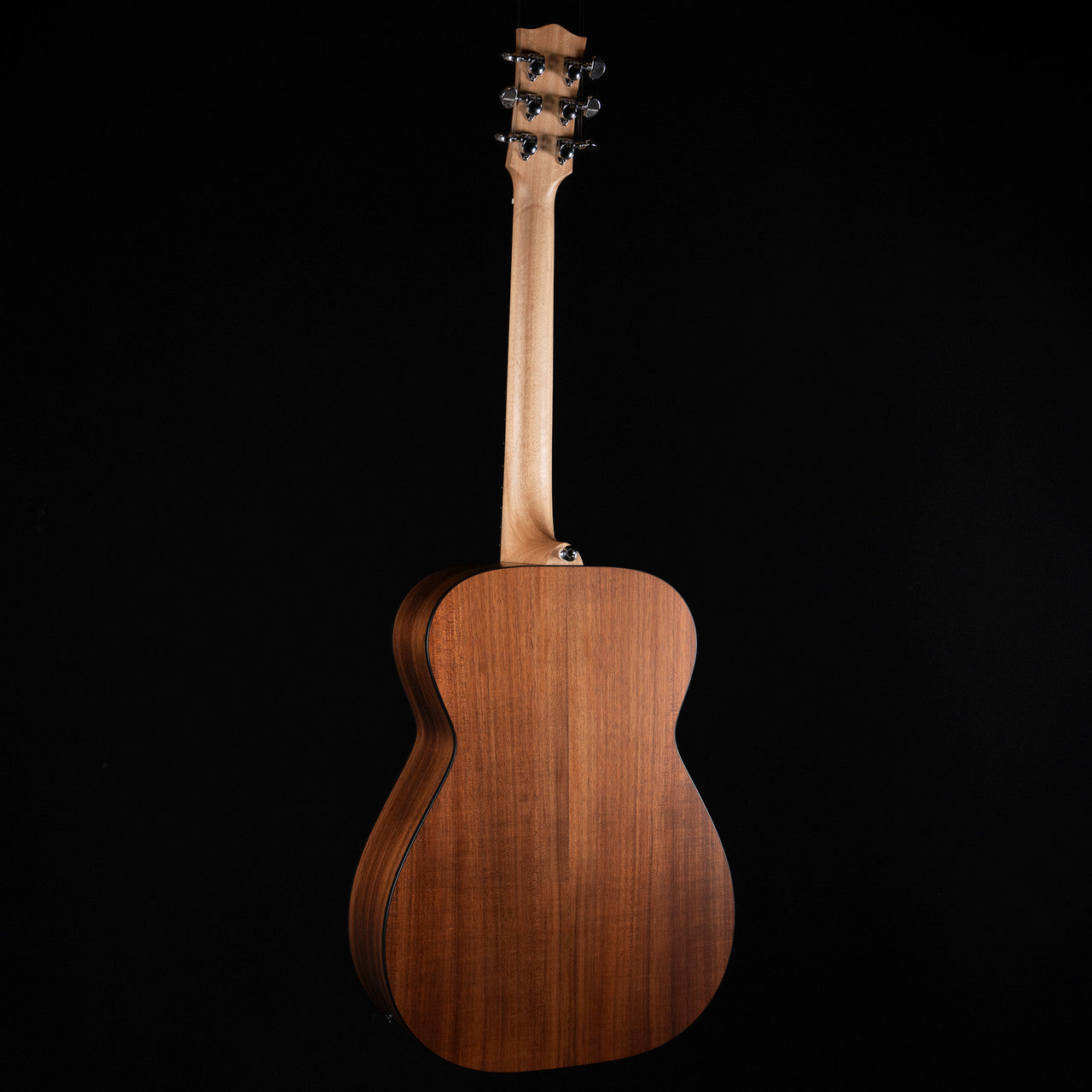

Adjusted bracing heights as well as a locked 15 foot radius for the arch of the back, gave us the plate resonance separation we were looking for between top and back. We now have the full, open, lower frequency response we were looking for as well as a crisp, well defined treble response.

The new 808 series sounds a whole lot bigger than a small bodied guitar should. We were hoping the end of this journey would produce a guitar that amazes the player at first strum, then continues to impress as each aspect of the sound of the guitar meets and surpasses the player’s expectation.

Specs:

• Body Shape: 808
• Top Material: "A" Grade Spruce

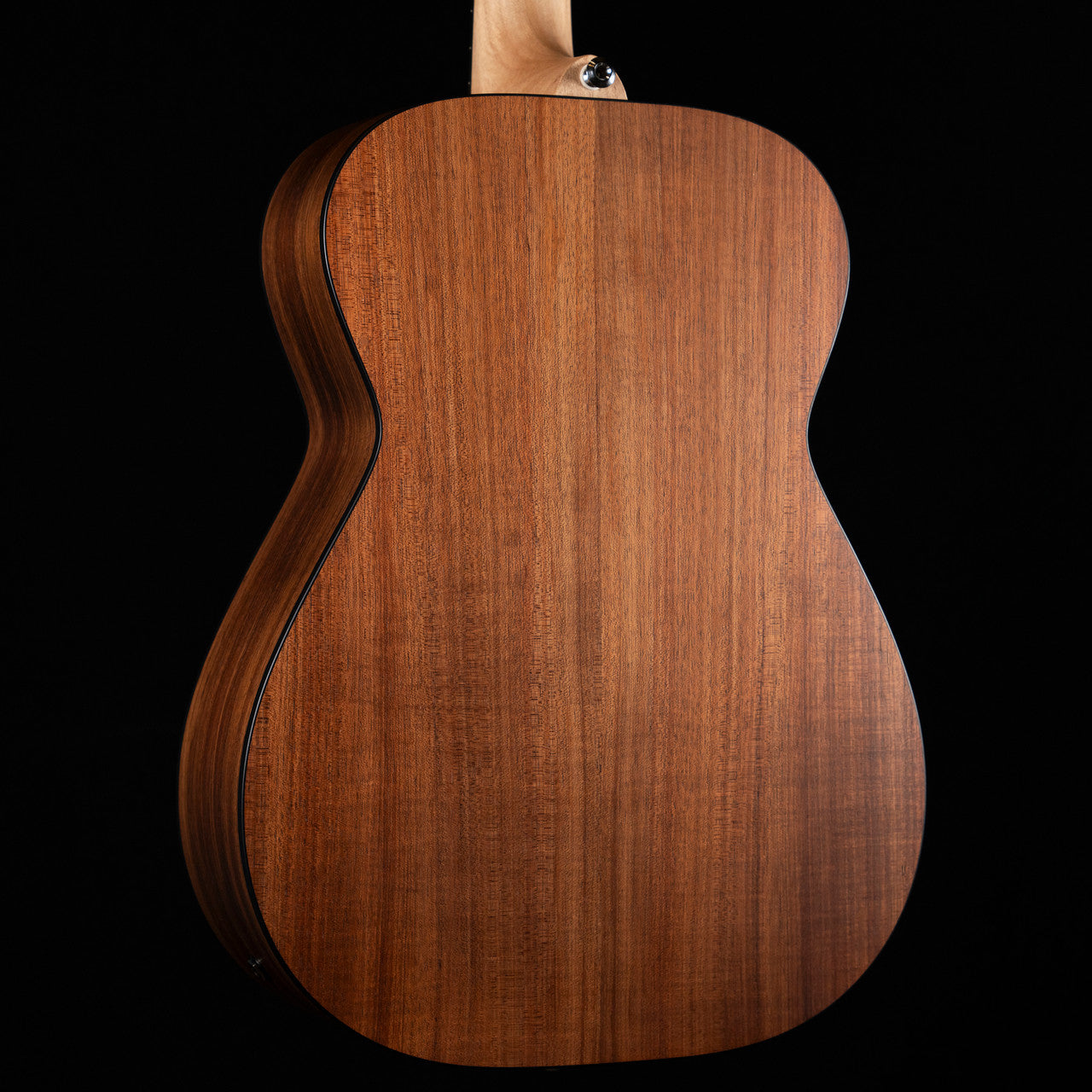

• Back and Sides: Blackwood
• Soundhole Diameter: 95mm
• Neck: Queensland Maple

• Scale Length: 25.5"
• Fretwire: Jescar FW43080
• Fingerboard Radius: 12"
• Nut Width: 1.736"
• Finish: Satin

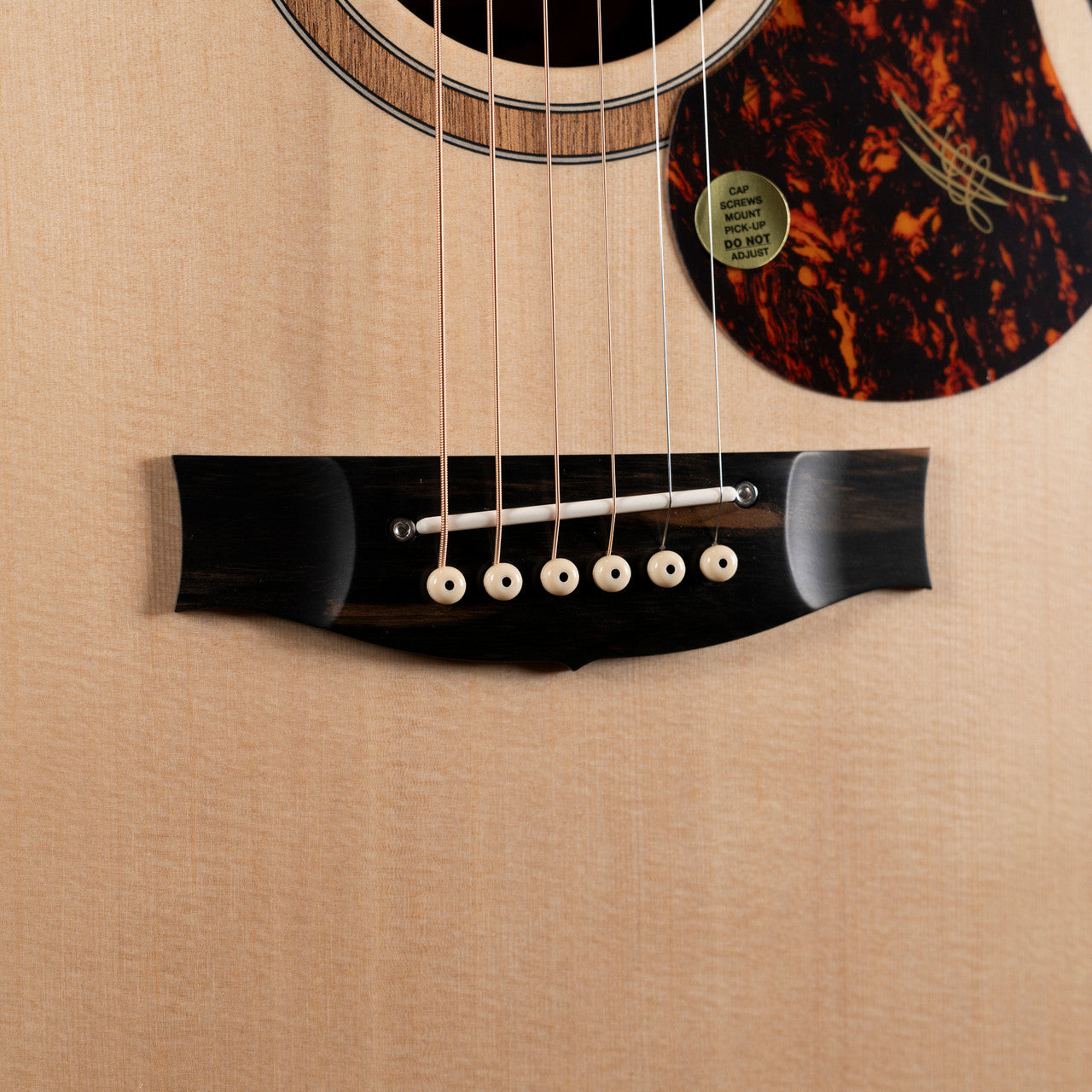

• Nut and Saddle: Bone

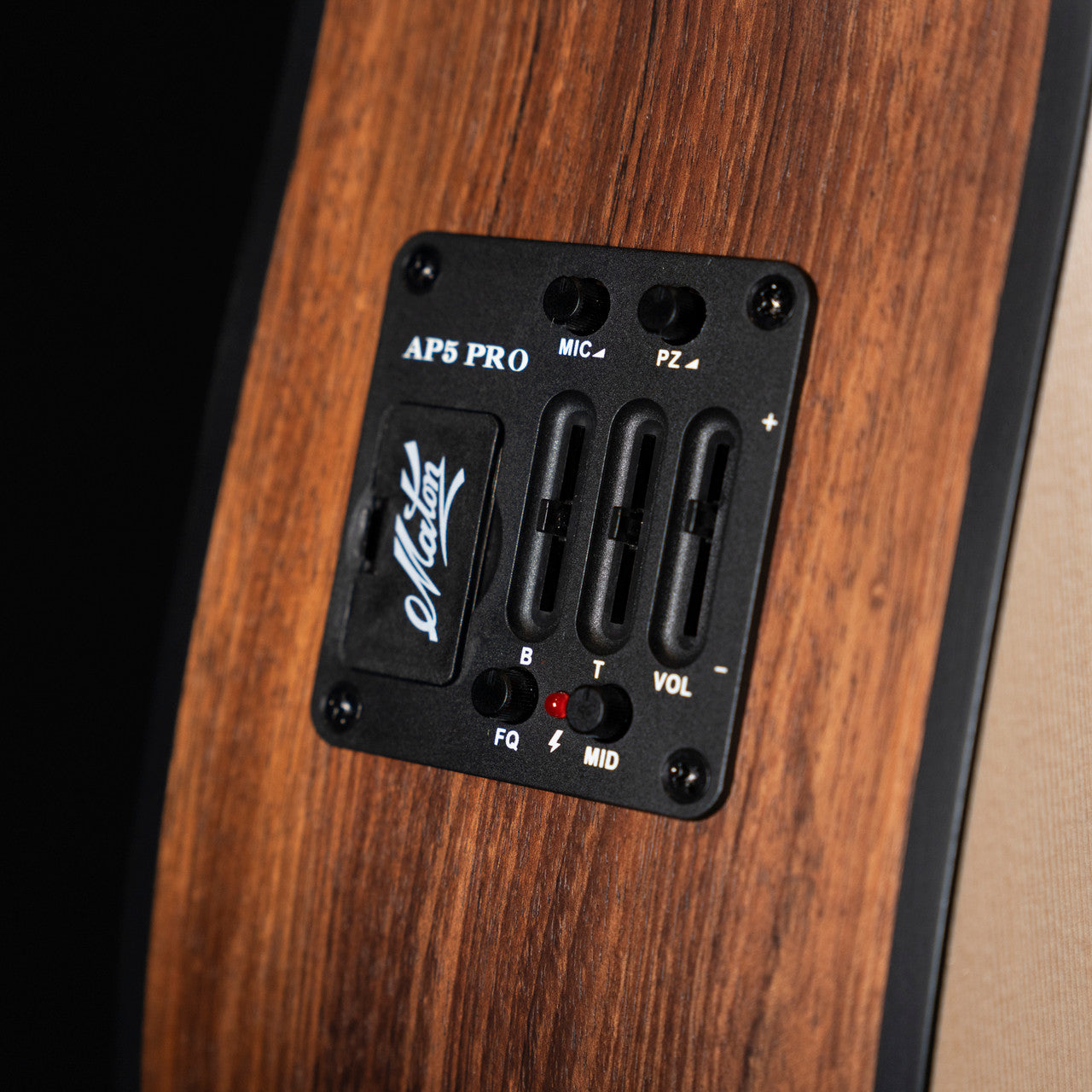

• Pickup: AP5-PRO
