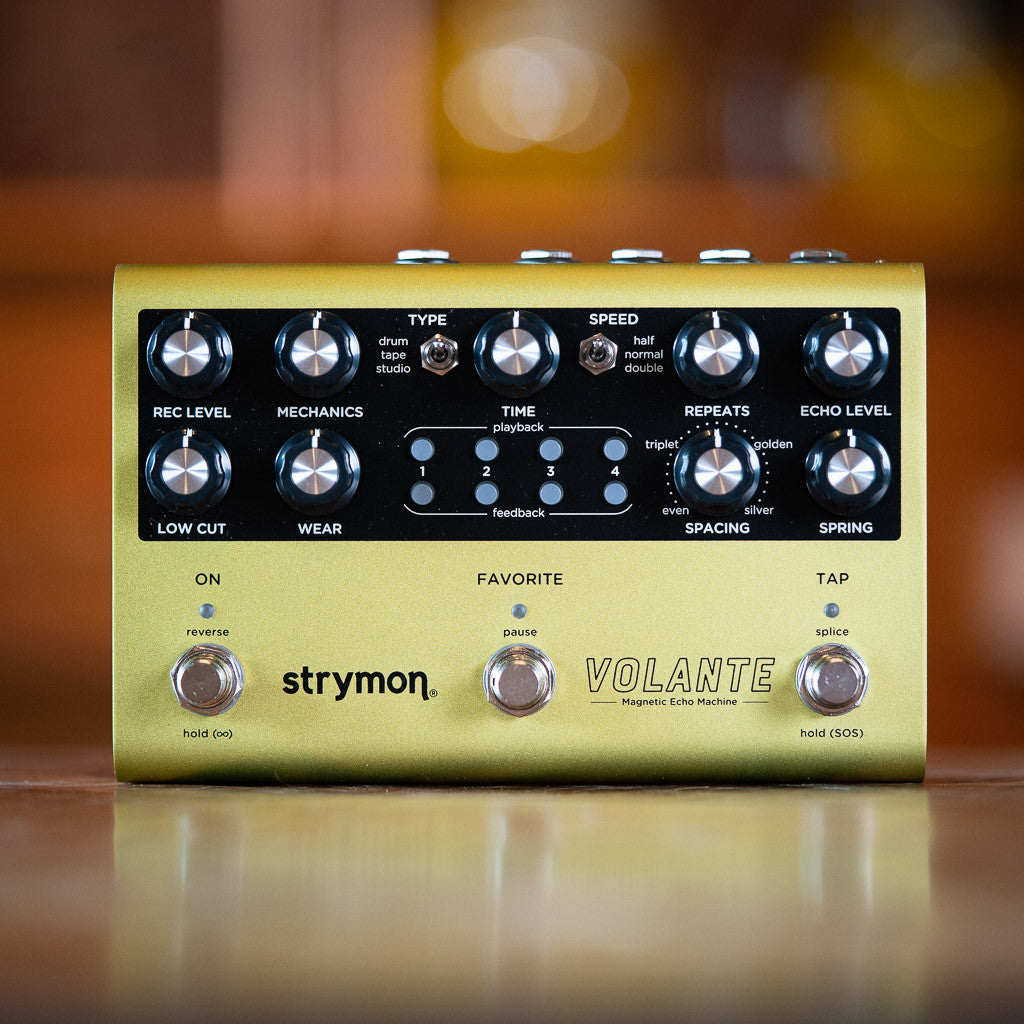

Strymon Volante - Magnetic Echo Machine

Strymon Volante - Magnetic Echo Machine

Sound Design

• Multi-head magnetic media delay machine providing four playback heads with individual feedback, panning, and level controls
• Processor-intense algorithms deliver meticulously nuanced recreations of vintage magnetic echo systems (drum echo, tape echo, studio reel-to-reel echo)
• Dedicated control over echo machine tone and media: Low Cut, Mechanics, Wear
• Input Record Level for clean reproduction to warm, fat saturation
• Independent Spring Reverb
• Sound on Sound looping mode with reverse, pause, splice, and infinite repeat functions

Ins, Outs, Switches

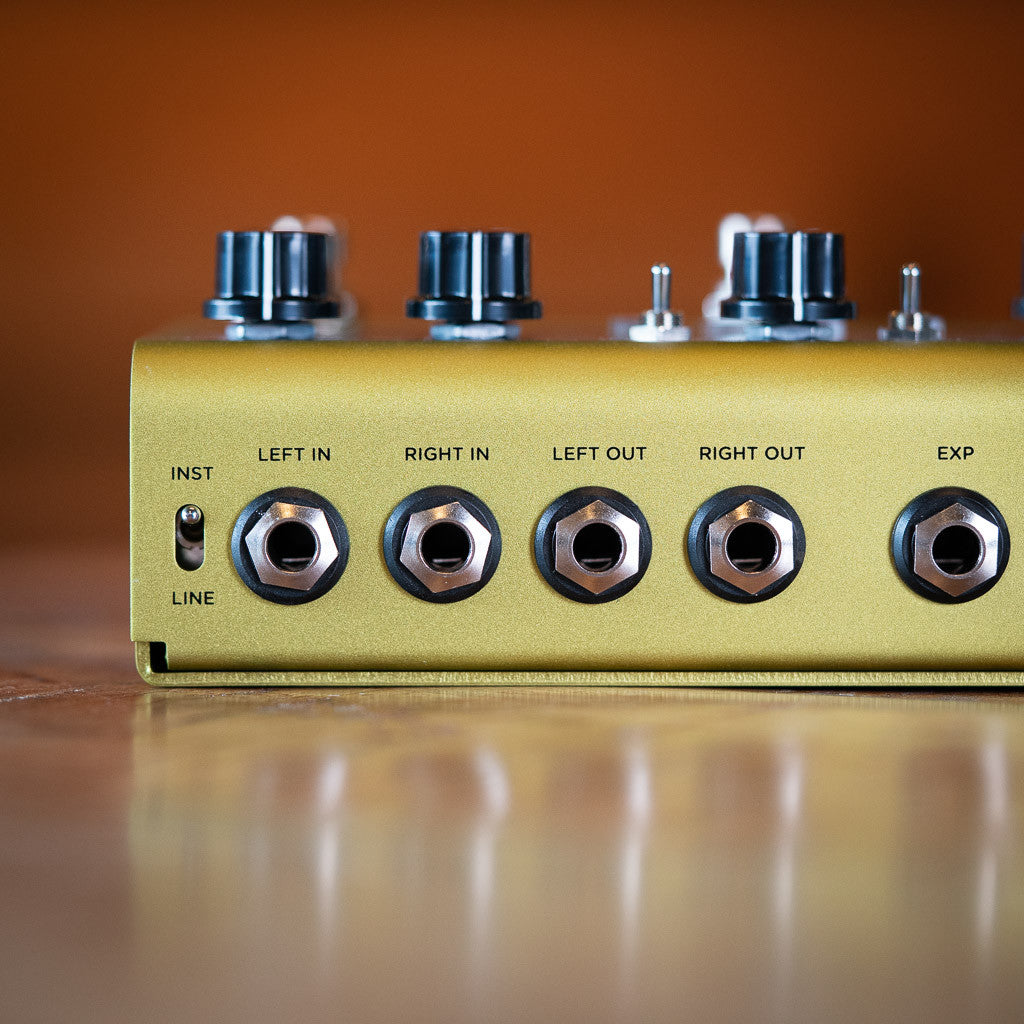

• High impedance stereo input
• Stereo output
• Input Level switch allows for both instrument and line level signals
• On, Favorite, and Tap Tempo footswitches
• Expression pedal input allows the connection of an expression pedal, external tap pedal, 1/4" to MIDI cable, or MultiSwitch Plus.
• Full featured MIDI in/out supporting MIDI CCs, program changes, and more
• USB jack for controlling MIDI via computer

Audio Quality

• Analog dry path for a zero latency dry signal that is never converted to digital
• Premium JFET analog front end
• Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide uncompromising audio quality
• Super high performance SHARC DSP
• 32-bit floating point processing
• 20Hz to 20kHz frequency response
• Audio Input Impedance: 1M Ohm
• Audio Output Impedance: 100 Ohm

More

• True Bypass (electromechanical relay switching) or selectable transparent Analog Buffered Bypass
• Strong and lightweight anodized olive green aluminum chassis
• 9V DC power supply included
• Power requirements: maximum 9 volts DC center-negative, with a minimum of 300mA of current
• Dimensions: 4.5" deep x 7" wide x 1.75" tall (114.3 mm x 177.3 mm x 44.5 mm)
• Designed and built in the USA
