Aguilar Ag 500 Bass Amp Head

The AG Series is defined by its clarity, dynamic range and fast transient response. With its high, clean headroom and transparent tone, the AG series allows your unique voice to shine through.

Power Output: 500 watts

Preamp Section: Solid State

Power Section: Class D

Transformer: Switching mode power supply (SMPS)

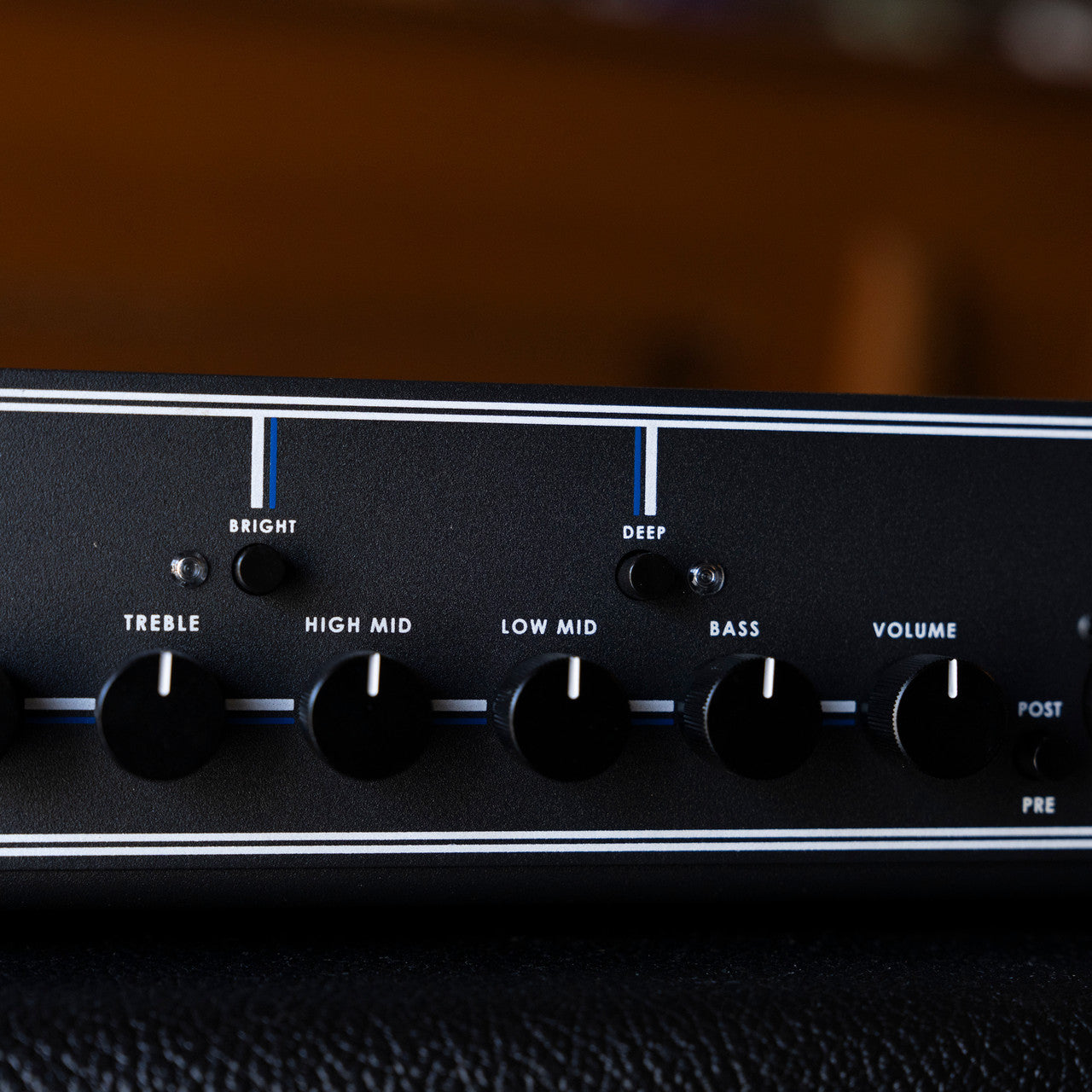

EQ Section:

• Bass: +/- 17 dB @ 40 Hz
• Deep: +6 dB <250 Hz
• Low Mid: +/- 15 dB @ 300 Hz
• High Mid: +/- 14dB @ 800 Hz
• Treble: +/- 14 dB @ 4 kHz
• Bright: +6 dB >3 kHz, shelving

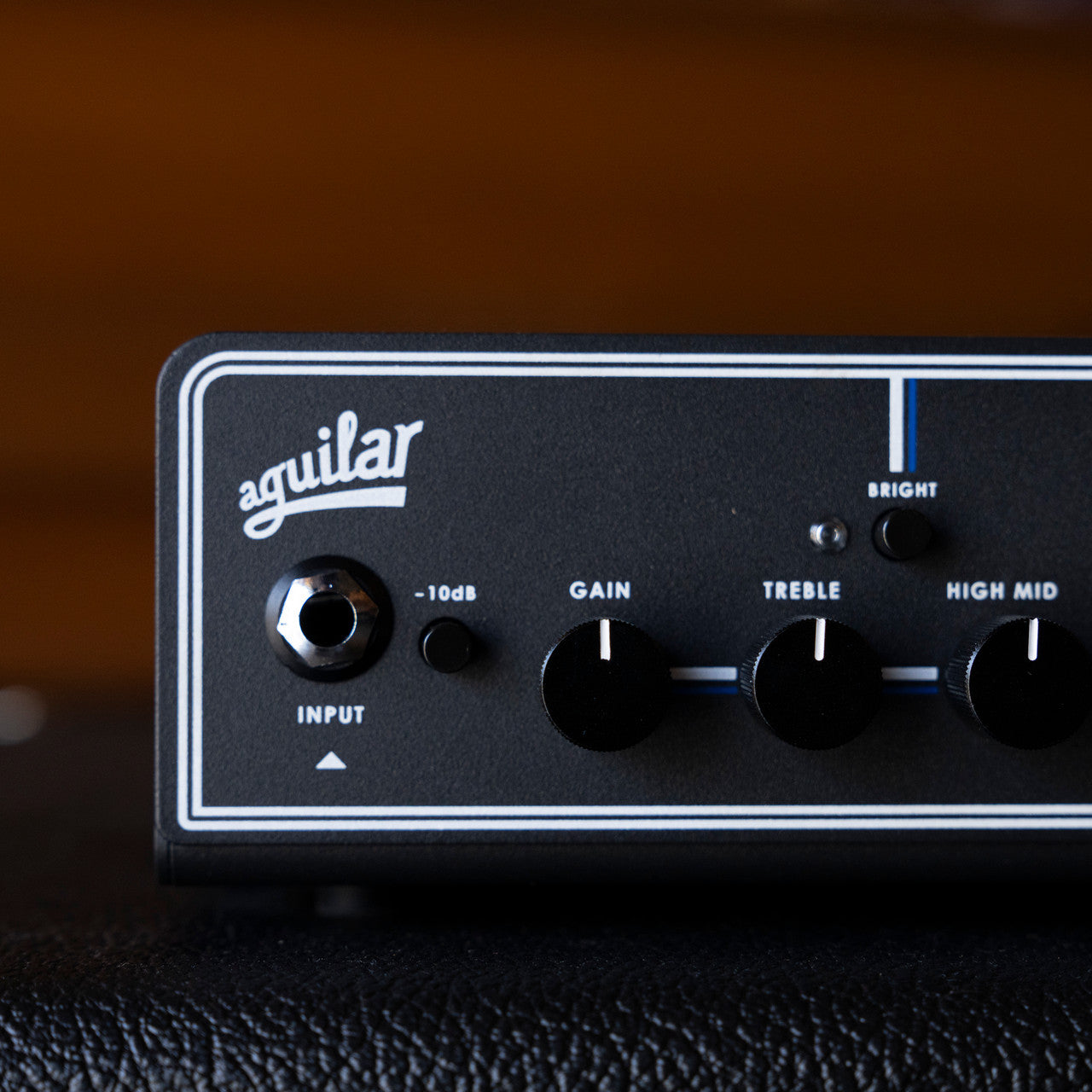

-10dB input pad

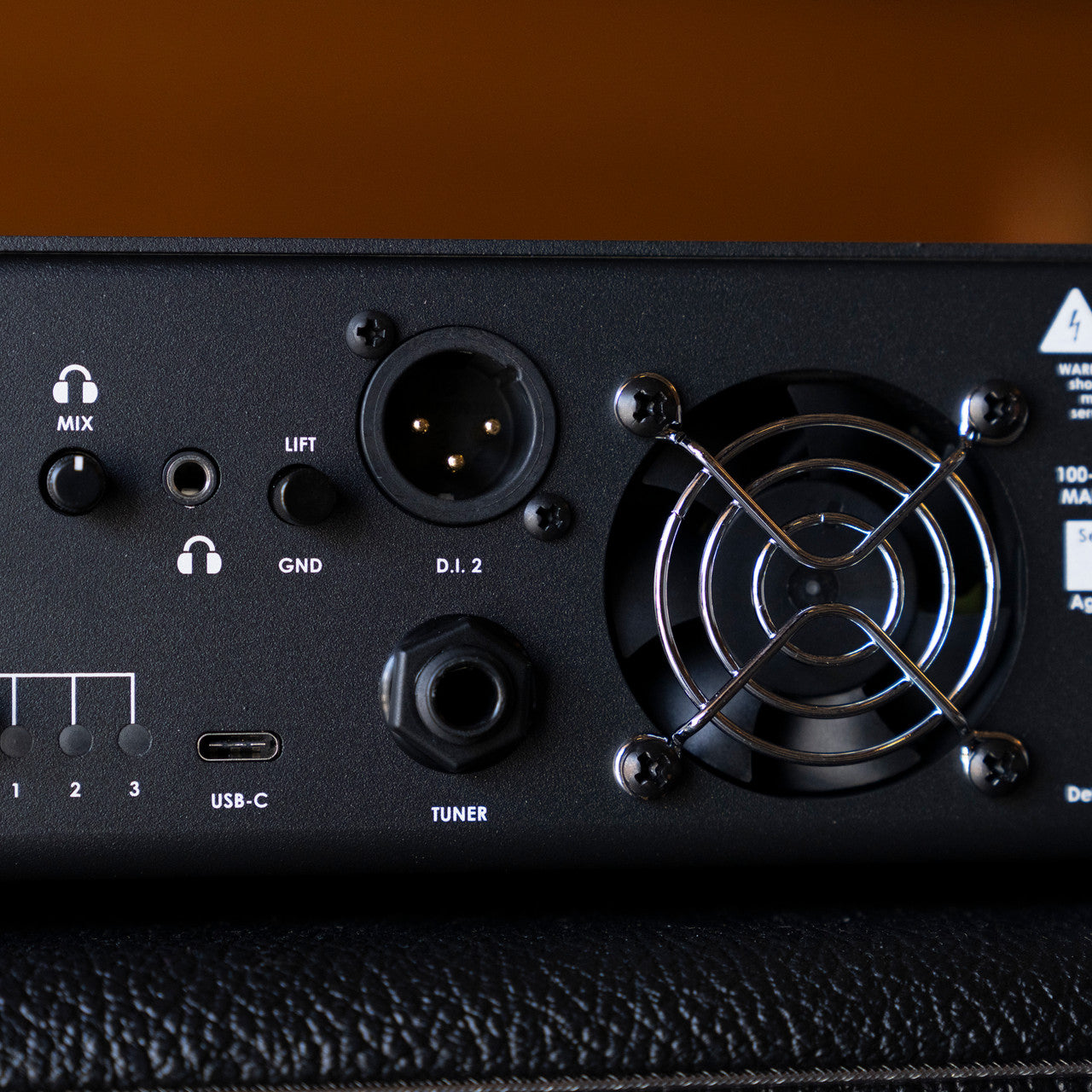

Tuner output

Inputs: One 1/4″ input jack, compatible with all active and passive basses

Speaker Outputs: One Neutrik Speakon speaker outputs

Effects Loop: Series operation. Adds 6 dB of additional gain, making it useful for a broad range of effects units

Balanced Output: XLR balanced output with pre/post EQ and ground lift switch

Cooling: Two high-quality whisper fans with thermal speed control
